In this tutorial we’ll show you how to build a web server that serves HTML and CSS files stored on the ESP32 filesystem. Instead of having to write the HTML and CSS text into the Arduino sketch, we’ll create separated HTML and CSS files.
For demonstration purposes, the web server we’ll build controls an ESP32 output, but it can be easily adapted for other purposes like displaying sensor readings.
Recommended reading: ESP8266 Web Server using SPIFFS
ESP32 Filesystem Uploader Plugin
To follow this tutorial you should have the ESP32 Filesystem Uploader plugin installed in your Arduino IDE. If you haven’t, follow the next tutorial to install it first:
Note: make sure you have the latest Arduino IDE installed, as well as the ESP32 add-on for the Arduino IDE. If you don’t, follow one of the next tutorials to install it:
- Windows instructions – Installing the ESP32 Board in Arduino IDE
- Mac and Linux instructions – Installing the ESP32 Board in Arduino IDE
Project Overview
Before going straight to the project, it’s important to outline what our web server will do, so that it is easier to understand.
- The web server you’ll build controls an LED connected to the ESP32 GPIO 2. This is the ESP32 on-board LED. You can control any other GPIO;
- The web server page shows two buttons: ON and OFF – to turn GPIO 2 on and off;
- The web server page also shows the current GPIO state.
The following figure shows a simplified diagram to demonstrate how everything works.
- The ESP32 runs a web server code based on the ESPAsyncWebServer library;
- The HTML and CSS files are stored on the ESP32 SPIFFS (Serial Peripheral Interface Flash File System);
- When you make a request on a specific URL using your browser, the ESP32 responds with the requested files;
- When you click the ON button, you are redirected to the root URL followed by /on and the LED is turned on;
- When you click the OFF button, you are redirected to the root URL followed by /off and the LED is turned off;
- On the web page, there is a placeholder for the GPIO state. The placeholder for the GPIO state is written directly in the HTML file between % signs, for example %STATE%.
Installing Libraries
In most of our projects we’ve created the HTML and CSS files for the web server as a String directly on the Arduino sketch. With SPIFFS, you can write the HTML and CSS in separated files and save them on the ESP32 filesystem.
One of the easiest ways to build a web server using files from the filesystem is by using the ESPAsyncWebServer library. The ESPAsyncWebServer library is well documented on its GitHub page. For more information about that library, check the following link:
Installing the ESPAsyncWebServer library
Follow the next steps to install the ESPAsyncWebServer library:
- Click here to download the ESPAsyncWebServer library. You should have a .zip folder in your Downloads folder
- Unzip the .zip folder and you should get ESPAsyncWebServer-master folder
- Rename your folder from
ESPAsyncWebServer-masterto ESPAsyncWebServer - Move the ESPAsyncWebServer folder to your Arduino IDE installation libraries folder
Installing the Async TCP Library for ESP32
The ESPAsyncWebServer library requires the AsyncTCP library to work. Follow the next steps to install that library:
- Click here to download the AsyncTCP library. You should have a .zip folder in your Downloads folder
- Unzip the .zip folder and you should get AsyncTCP-master folder
- Rename your folder from
AsyncTCP-masterto AsyncTCP - Move the AsyncTCPfolder to your Arduino IDE installation libraries folder
- Finally, re-open your Arduino IDE
Organizing your Files
To build the web server you need three different files. The Arduino sketch, the HTML file and the CSS file. The HTML and CSS files should be saved inside a folder called data inside the Arduino sketch folder, as shown below:
Creating the HTML File
The HTML for this project is very simple. We just need to create a heading for the web page, a paragraph to display the GPIO state and two buttons.
Create an index.html file with the following content or download all the project files here:
<!DOCTYPE html>
<html>
<head>
<title>ESP32 Web Server</title>
<meta name="viewport" content="width=device-width, initial-scale=1">
<link rel="icon" href="data:,">
<link rel="stylesheet" type="text/css" href="style.css">
</head>
<body>
<h1>ESP32 Web Server</h1>
<p>GPIO state: <strong> %STATE%</strong></p>
<p><a href="/on"><button class="button">ON</button></a></p>
<p><a href="/off"><button class="button button2">OFF</button></a></p>
</body>
</html>
Because we’re using CSS and HTML in different files, we need to reference the CSS file on the HTML text. The following line should be added between the <head> </head> tags:
<link rel="stylesheet" type="text/css" href="style.css">
The <link> tag tells the HTML file that you’re using an external style sheet to format how the page looks. The rel attribute specifies the nature of the external file, in this case that it is a stylesheet—the CSS file—that will be used to alter the appearance of the page.
The type attribute is set to “text/css” to indicate that you’re using a CSS file for the styles. The href attribute indicates the file location; since both the CSS and HTML files will be in the same folder, you just need to reference the filename: style.css.
In the following line, we write the first heading of our web page. In this case we have “ESP32 Web Server”. You can change the heading to any text you want:
<h1>ESP32 Web Server</h1>
Then, we add a paragraph with the text “GPIO state: ” followed by the GPIO state. Because the GPIO state changes accordingly to the state of the GPIO, we can add a placeholder that will then be replaced for whatever value we set on the Arduino sketch.
To add placeholder we use % signs. To create a placeholder for the state, we can use %STATE%, for example.
<p>GPIO state: <strong>%STATE%</strong></p>
Attributing a value to the STATE placeholder is done in the Arduino sketch.
Then, we create an ON and an OFF buttons. When you click the on button, we redirect the web page to to root followed by /on url. When you click the off button you are redirected to the /off url.
<p><a href="/on"><button class="button">ON</button></a></p>
<p><a href="/off"><button class="button button2">OFF</button></a></p>
Creating the CSS file
Create the style.css file with the following content or download all the project files here:
html {
font-family: Helvetica;
display: inline-block;
margin: 0px auto;
text-align: center;
}
h1{
color: #0F3376;
padding: 2vh;
}
p{
font-size: 1.5rem;
}
.button {
display: inline-block;
background-color: #008CBA;
border: none;
border-radius: 4px;
color: white;
padding: 16px 40px;
text-decoration: none;
font-size: 30px;
margin: 2px;
cursor: pointer;
}
.button2 {
background-color: #f44336;
}
This is just a basic CSS file to set the font size, style and color of the buttons and align the page. We won’t explain how CSS works. A good place to learn about CSS is the W3Schools website.
Arduino Sketch
Copy the following code to the Arduino IDE or download all the project files here. Then, you need to type your network credentials (SSID and password) to make it work.
/*********
Rui Santos
Complete project details at https://randomnerdtutorials.com
*********/
// Import required libraries
#include "WiFi.h"
#include "ESPAsyncWebServer.h"
#include "SPIFFS.h"
// Replace with your network credentials
const char* ssid = "REPLACE_WITH_YOUR_SSID";
const char* password = "REPLACE_WITH_YOUR_PASSWORD";
// Set LED GPIO
const int ledPin = 2;
// Stores LED state
String ledState;
// Create AsyncWebServer object on port 80
AsyncWebServer server(80);
// Replaces placeholder with LED state value
String processor(const String& var){
Serial.println(var);
if(var == "STATE"){
if(digitalRead(ledPin)){
ledState = "ON";
}
else{
ledState = "OFF";
}
Serial.print(ledState);
return ledState;
}
return String();
}
void setup(){
// Serial port for debugging purposes
Serial.begin(115200);
pinMode(ledPin, OUTPUT);
// Initialize SPIFFS
if(!SPIFFS.begin(true)){
Serial.println("An Error has occurred while mounting SPIFFS");
return;
}
// Connect to Wi-Fi
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(1000);
Serial.println("Connecting to WiFi..");
}
// Print ESP32 Local IP Address
Serial.println(WiFi.localIP());
// Route for root / web page
server.on("/", HTTP_GET, [](AsyncWebServerRequest *request){
request->send(SPIFFS, "/index.html", String(), false, processor);
});
// Route to load style.css file
server.on("/style.css", HTTP_GET, [](AsyncWebServerRequest *request){
request->send(SPIFFS, "/style.css", "text/css");
});
// Route to set GPIO to HIGH
server.on("/on", HTTP_GET, [](AsyncWebServerRequest *request){
digitalWrite(ledPin, HIGH);
request->send(SPIFFS, "/index.html", String(), false, processor);
});
// Route to set GPIO to LOW
server.on("/off", HTTP_GET, [](AsyncWebServerRequest *request){
digitalWrite(ledPin, LOW);
request->send(SPIFFS, "/index.html", String(), false, processor);
});
// Start server
server.begin();
}
void loop(){
}
How the Code Works
First, include the necessary libraries:
#include "WiFi.h"
#include "ESPAsyncWebServer.h"
#include "SPIFFS.h"
You need to type your network credentials in the following variables:
const char* ssid = "REPLACE_WITH_YOUR_SSID";
const char* password = "REPLACE_WITH_YOUR_PASSWORD";
Next, create a variable that refers to GPIO 2 called ledPin, and a String variable to hold the led state: ledState.
const int ledPin = 2;
String ledState;
Create an AsynWebServer object called server that is listening on port 80.
AsyncWebServer server(80);
processor()
The processor() function is what will attribute a value to the placeholder we’ve created on the HTML file. It accepts as argument the placeholder and should return a String that will replace the placeholder. The processor() function should have the following structure:
String processor(const String& var){
Serial.println(var);
if(var == "STATE"){
if(digitalRead(ledPin)){
ledState = "ON";
}
else{
ledState = "OFF";
}
Serial.print(ledState);
return ledState;
}
return String();
}
This function first checks if the placeholder is the STATE we’ve created on the HTML file.
if(var == "STATE"){
If it is, then, accordingly to the LED state, we set the ledState variable to either ON or OFF.
if(digitalRead(ledPin)){
ledState = "ON";
}
else{
ledState = "OFF";
}
Finally, we return the ledState variable. This replaces the placeholder with the ledState string value.
return ledState;
setup()
In the setup(), start by initializing the Serial Monitor and setting the GPIO as an output.
Serial.begin(115200);
pinMode(ledPin, OUTPUT);
Initialize SPIFFS:
if(!SPIFFS.begin(true)){
Serial.println("An Error has occurred while mounting SPIFFS");
return;
}
Wi-Fi connection
Connect to Wi-Fi and print the ESP32 IP address:
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(1000);
Serial.println("Connecting to WiFi..");
}
Serial.println(WiFi.localIP());
Async Web Server
The ESPAsyncWebServer library allows us to configure the routes where the server will be listening for incoming HTTP requests and execute functions when a request is received on that route. For that, use the on() method on the server object as follows:
server.on("/", HTTP_GET, [](AsyncWebServerRequest *request){
request->send(SPIFFS, "/index.html", String(), false, processor);
});
When the server receives a request on the root “/” URL, it will send the index.html file to the client. The last argument of the send() function is the processor, so that we are able to replace the placeholder for the value we want – in this case the ledState.
Because we’ve referenced the CSS file on the HTML file, the client will make a request for the CSS file. When that happens, the CSS file is sent to the client:
server.on("/style.css", HTTP_GET, [](AsyncWebServerRequest *request){
request->send(SPIFFS, "/style.css","text/css");
});
Finally, you need to define what happens on the /on and /off routes. When a request is made on those routes, the LED is either turned on or off, and the ESP32 serves the HTML file.
server.on("/on", HTTP_GET, [](AsyncWebServerRequest *request){
digitalWrite(ledPin, HIGH);
request->send(SPIFFS, "/index.html", String(),false, processor);
});
server.on("/off", HTTP_GET, [](AsyncWebServerRequest *request){
digitalWrite(ledPin, LOW);
request->send(SPIFFS, "/index.html", String(),false, processor);
});
In the end, we use the begin() method on the server object, so that the server starts listening for incoming clients.
server.begin();
Because this is an asynchronous web server, you can define all the requests in the setup(). Then, you can add other code to the loop() while the server is listening for incoming clients.
Uploading Code and Files
Save the code as Async_ESP32_Web_Server or download all the project files here. Go to Sketch > Show Sketch Folder, and create a folder called data. Inside that folder you should save the HTML and CSS files.
Then, upload the code to your ESP32 board. Make sure you have the right board and COM port selected. Also, make sure you’ve added your networks credentials to the code.

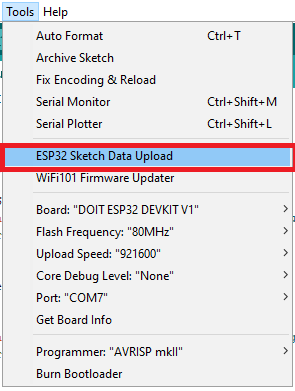

After uploading the code, you need to upload the files. Go to Tools > ESP32 Data Sketch Upload and wait for the files to be uploaded.

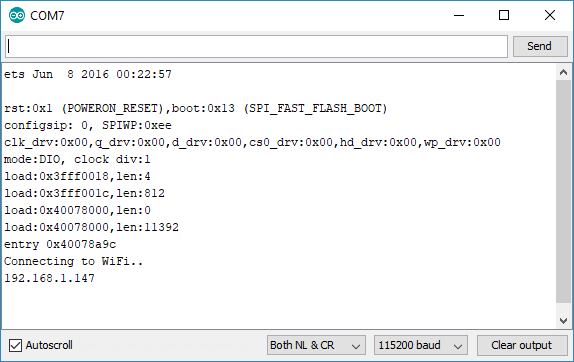

When everything is successfully uploaded, open the Serial Monitor at a baud rate of 115200. Press the ESP32 “ENABLE” button, and it should print the ESP32 IP address.
Demonstration
Open your browser and type the ESP32 IP address. Press the ON and OFF buttons to control the ESP32 on-board LED. Also, check that the GPIO state is being updated correctly.
Wrapping Up
Using SPI Flash File System (SPIFFS) is specially useful to store HTML and CSS files to serve to a client – instead of having to write all the code inside the Arduino sketch.
The ESPAsyncWebServer library allows you to build a web server by running a specific function in response to a specific request. You can also add placeholders to the HTML file that can be replaced with variables – like sensor readings, or GPIO states, for example.
If you liked this project, you may also like:
- ESP32 Web Server with BME280 – Mini Weather Station
- ESP32 Web Server – Arduino IDE
- Getting Started with MicroPython on ESP32 and ESP8266
This is an excerpt from our course: Learn ESP32 with Arduino IDE. If you like ESP32 and you want to learn more, we recommend enrolling in Learn ESP32 with Arduino IDE course.
Can you configure the device to be in Station mode where it creates its own hotspot so there is no internet / router needed?
Hi Evan.
I think you mean setting the ESP32 as an access point, where there is no need for router.
Yes, you can set the ESP32 as an acess point. Take a look at the following tutorial:
– How to Set an ESP32 Access Point (AP) for Web Server
I hope this helps.
Regards,
Sara 🙂
Thanks for an amazing tutorial, Rui!
Can HTML file contain JavaScript code?
Yes.
Can I upload Javascript file?
Yes.
Hi, incredible good… thanks!
Can you store the CSS and HTML files into an SD card, so that you can actualize it every time you want without requiring to update your sketch?
You don’t need to re-compile whenever you want to upload the HTML files. They are stored in the ESP32 file system: SPIFFS. Totally separate memory from code – that was the point of this article and not to store the HTML in the code, but in the dedicated local filing system. Saves you needing any SD, its built into the ESP32 own memory map.
Hi Adam.
That’s right! Thank you for answering the question.
Regards,
Sara 🙂
Hi Paul.
Yes, alternatively you can store your files in an SD card.
You need to use the SD.h library to manipulate the files on the SD card.
Regards,
Sara 🙂
Hey Team, this looks awesome! Will have a go when I get back home.
I’ll try the LED tutorial first, then implement some crazier stuff 😉
(Probably a LED strip/matrix)
Thanks!
Hi Rho.
That’s great!
Then, tell us how it went 🙂
Regards,
Sara 🙂
Excelente como todos tus tutoriales
Thanks Leo.
Regards,
Sara 🙂
Well, I suppose SD cards can hold up to 32 G data, SPIFFS maybe 1 M
Then SPIFFS is convenient with unfrequent changes (suppose html page countains data: if they are updated once a second -temperature; ca 10 chars, with a time stamp in a huamn friendly format -, it needs ca one day to fill SPIFFS …. and some decades to fill SD card).
I hope this calculation is not absurd (and I am aware I missed number of repeated writes on SD cards, and maybe on ESP flash).
Hi Denis, you are right.
As stated in this tutorial, using SPIFFS is useful to
– Create configuration files with settings;
– Save data permanently;
– Create files to save small amounts of data instead of using a microSD card;
– Save HTML and CSS files to build a web server;
It shouldn’t be used to create datalogging projects that required large amounts of data or multiple updates for second.
Thank you for your comment,
Regards,
Sara 🙂
Excellent! Very good tutorial. thanks
how to send text file in sd card to a web server in esp wroom32
Hi.
We don’t have a specific tutorial about that subject.
But we have a project in which we load the html file from an SD card to a web server using ESP32. You can take a look at the code in the following project:
https://randomnerdtutorials.com/build-an-all-in-one-esp32-weather-station-shield/
I hope it helps.
Regards,
Sara 🙂
Hi guys, I have the webserver running with SPIFFS. I have tried adding a slider to get a value back into ESP without much success. Without using Ajax or Java, is there an easy way of getting a slider value fro the webpage into ESP32?
Hi Alan.
I don’t have a specific example using just a slider.
We have an example that uses a slider to control a servo motor.
You can take a look at the code and try to figure out how it works:
https://randomnerdtutorials.com/esp32-servo-motor-web-server-arduino-ide/
Regards,
Sara
Good job ! Is it possible to add image in the data folder for HTML file to reference it? Is it also possible to use bootstrap with the help of SPIFFS? Thanks a lot
Hi.
Yes, you can use bootstrap.
I think you can also add images in the data folder, but you need to be careful with the space it occupies (I haven’t tried images yet, but I think it might work).
Hi Sara!
I am having trouble uploading file in the Data folder with the following error message:
SPIFFS not supported on esp32
Hi again.
Please update your ESP32 repository.
Try taking a look at the following issue and see if that solves your problem:
github.com/me-no-dev/arduino-esp32fs-plugin/issues/5
Have you installed the ESP32 filesystem uploader? https://randomnerdtutorials.com/install-esp32-filesystem-uploader-arduino-ide/
Regards,
Sara 🙂
Thanks for an amazing tutorial, how to make led state update in all devices? and how many device can connect to this server ?i connected 4 device and all worked very good.only led state doesnt update in all devices. thanks
Hi Rashad.
To update the LED state you need to refresh the device’s browser.
If you want it to update automatically, you can use ajax in your webserver code, for example.
You can connect as many clients as you want, as long as the connection closes after the response is sent.
Regards,
Sara 🙂
I tried for several hours to install the ESP32 file loader as described. It does not show up under my tools drop down. Any suggestions? I am using Arduino 1.8.8 and win10
Hi Rick.
Are you using just one version of Arduino IDE? Are you sure you’re placing the .jar file on the right directory?
Have you tried our exact instructions:
https://randomnerdtutorials.com/install-esp32-filesystem-uploader-arduino-ide/
You can also try to follow Github’s instructions:
https://github.com/me-no-dev/arduino-esp32fs-plugin
If you could provide more details, it may be easier to find out what’s wrong.
Regards,
Sara 🙂
There’s no option to upload ESP32 sketch data on Arduino 1.8.8. Am I missing something here I’m on Linux Solus Mate
Hi Daniel.
You need to install the ESP32 Filesystem Uploader on Arduino IDE.
Follow the next tutorial to do that:
https://randomnerdtutorials.com/install-esp32-filesystem-uploader-arduino-ide/
Regards,
Sara 🙂
Thanks Sara 🙂 … I just did now the issue is I can’t upload the ESP32 Sketch data. I get the following error message:
[SPIFFS] data : /home/object-undefined/Arduino/ESP32_Async_Web_Server/data
[SPIFFS] start : 2691072
[SPIFFS] size : 1468
[SPIFFS] page : 256
[SPIFFS] block : 4096
/style.css
/index.html
[SPIFFS] upload : /tmp/arduino_build_905232/ESP32_Async_Web_Server.spiffs.bin
[SPIFFS] address: 2691072
[SPIFFS] port : /dev/ttyUSB0
[SPIFFS] speed : 921600
[SPIFFS] mode : dio
[SPIFFS] freq : 80m
Traceback (most recent call last):
File “/home/object-undefined/Arduino/hardware/espressif/esp32/tools/esptool.py”, line 35, in
import serial.tools.lists_ports as list_ports
ImportError: No module named lists_ports
SPIFFS Upload failed!
I have done everything on you guide. but Serial monitor show
Backtrace: 0x400874f8:0x3ffc64c0 0x400875f7:0x3ffc64e0 0x400d4793:0x3ffc6500 0x400eaf04:0x3ffc6530 0x400eb272:0x3ffc6550 0x400eb5a1:0x3ffc65a0 0x400ead18:0x3ffc6600 0x400eab5a:0x3ffc6650 0x400eabf3:0x3ffc6670 0x400eac3e:0x3ffc6690 0x400e9f44:0x3ffc66b0 0x400e9ef3:0x3ffc66d0 0x400d5b12:0x3ffc6700
Rebooting…
assertion “false && “item should have been present in cache”” failed: file “/Users/ficeto/Desktop/ESP32/ESP32/esp-idf-public/components/nvs_flash/src/nvs_item_hash_list.cpp”, line 85, function: void nvs::HashList::erase(size_t)
abort() was called at PC 0x400d4793 on core 0
How can I fix it?
Hi Nash.
I’ve searched for a while and I found some people with the same problem but using other sketches.
Unfortunately, I haven’t found a clear solution for that problem:
github.com/espressif/arduino-esp32/issues/884
github.com/espressif/arduino-esp32/issues/2159
github.com/espressif/arduino-esp32/issues/1967
In this discussion, they suggest erasing the flash memory before uploading the new sketch: bbs.esp32.com/viewtopic.php?t=8888
I hope this helps in some way.
Regards,
Sara
Hi,
Do you have code for wifi controlled robot using ESP32 where we can control the direction of robot via web server?
Thanks . Looking forward for your reply
Hello Sara
Tolling about ESP32 in AP mode From factory is programmed to accept maximum 4 clients connections Is known that can be extended to 8 or more
Can you help me to increase the maximum connections to 8 at list
Regards
Hello Sara,
i able to upload the sketch in my arduino ide, in the serial monitor showing the text just like above except the connecting line and ip address. it’s not showing at all. why is that?
Hi.
That usually happens when people forget to insert their network credentials.
Please make sure that you’ve entered your network credentials in the code and that they are correct.
Also, make sure that your ESP32 is relatively close to your router.
REgards,
Sara
Hello Sara,
i think found out the problem, it seems when i upload the sketch with tools->esp32 sketch data upload. it uploaded successfully, but when i run the serial monitor it kind of not work. it only read the previous uploaded sketch using the normal upload mode (ctrl-u)
Nice tutorial! My contribution is this link(https://randomnerdtutorials.com/install-esp32-filesystem-uploader-arduino-ide/) to find tools->esp32 sketch data upload. It is not automatic. Please, update tutorial to use such link to add the menu to Arduino.
Hi.
In that project, we refer at the beginning of the post, that you need to install the plugin: https://randomnerdtutorials.com/install-esp32-filesystem-uploader-arduino-ide/
Regards,
Sara
Hi Sara!
I’ve already implemented a project using the WebServer.h library instead of the ESPAsyncWebServer library on a ESP32.
Is there a way to handle SPIFFS with WebServer.h or I need to convert my project using the ESPAsyncWebServer library ?
Hi Fred.
I think it would be easier to convert your project to the ESPASyncWebServer library.
It is not as straightforward using the WebServer library (in my opinion): https://github.com/espressif/arduino-esp32/blob/master/libraries/WebServer/examples/FSBrowser/FSBrowser.ino
Regards,
Sara
Hello ,
The tutorial is very informative and explained with details. I’m curious to know whether we can upload the HTML file to SPIFFS using platform IO. is there any way to upload files in platform IO?
Hi,
You have to create a folder name data/ same level as src/
Then in terminal write “pio run -t uploadfs”
Thanks for sharing that 😀
Rebooting…
assertion “false && “item should have been present in cache”” failed: file “/Users/ficeto/Desktop/ESP32/ESP32/esp-idf-public/components/nvs_flash/src/nvs_item_hash_list.cpp”, line 85, function: void nvs::HashList::erase(size_t)
abort() was called at PC 0x400d4793 on core 0
This error is caused when the Arduino IDE “Tools” options for ESP32 flashing MISBEHAVE. Not kidding! And it is possibly a result of a prior code that tweaked the nvs flash and SPIFFS partitions of ESP32.
Solution:
STEP 1:
Restart Arduino IDE and check if you are getting the standard options on the “Tools” tab when flashing to ESP32, i.e. Flash Freq, Size, Mode, Partition Scheme etc.
STEP 2:
If these are present, go ahead and flash your code to ESP32. Make sure all options have been selected properly. SUCCESS! EXIT!
STEP 3:
If these (Flash Freq, Size, Mode, Partition Scheme etc. ) options do not appear under “Tools” tab, GO TO STEP 1, until STEP 2 becomes true.
Hi Ved.
Thanks for sharing.
I had a few readers reporting a similar issue and I didn’t know how to solve that.
I hope this helps other people.
Thank you 😀
Hi,
Thanks for the detailed tutorial.
I want to try SPIFF with SOFTAP. Is there anything that you can help me with?
Hi.
You can take a look at this tutorial that shows how to set an ESP32 soft access point: https://randomnerdtutorials.com/esp32-access-point-ap-web-server/
I hope this helps.
Regards,
Sara
Could someone enlighten me on what would be involved in porting this sketch/files to a secure server (HTTPS).
I can create the HTTPS server on my ESP32, connect to it but am at a loss in sending the html response from SPIFFS or in replacing the status as there doesn’t seem to be an equivalent processor function.
I missed a step. It was esp32 uploader. It works perfectly now. Thanks
Hi, incredible good tutorial, thanks!
i have tried to make a stepper motor run when i Route to set GPIO to HIGH or LOW. it is somehow working but every-time i hit one of the buttons my esp32 restarts
…………
/ Route to set GPIO to HIGH
server.on(“/on”, HTTP_GET, [](AsyncWebServerRequest *request){
digitalWrite(ledPin, HIGH);
StepsRequired = STEPS_PER_OUT_REV * 2 ;
steppermotor.setSpeed(1000);
steppermotor.step(StepsRequired);
request->send(SPIFFS, “/index.html”, String(), false, processor);
});
// Route to set GPIO to LOW
server.on(“/off”, HTTP_GET, [](AsyncWebServerRequest *request){
digitalWrite(ledPin, LOW);
StepsRequired = – STEPS_PER_OUT_REV * 2 ;
steppermotor.setSpeed(1000);
steppermotor.step(StepsRequired);
request->send(SPIFFS, “/index.html”, String(), false, processor);
});
any suggestions ? Thank you .
Hi Alexandru.
What pins do you have connected to your motors?
You’re probably using pins that you shouldn’t.
See the pinout for the ESP32 here: https://randomnerdtutorials.com/esp32-pinout-reference-gpios/
Regards,
Sara
Thanks a lot for the quick response !!
…………
//Include the Arduino Stepper Library
#include
// Define Constants
// Number of steps per internal motor revolution
const float STEPS_PER_REV = 32;
// Amount of Gear Reduction
const float GEAR_RED = 64;
// Number of steps per geared output rotation
const float STEPS_PER_OUT_REV = STEPS_PER_REV * GEAR_RED;
// Define Variables
// Number of Steps Required
int StepsRequired;
// Create Instance of Stepper Class
// Connected to ULN2003 Motor Driver In1, In2, In3, In4
// Pins entered in sequence 1-3-2-4 for proper step sequencing
Stepper steppermotor(STEPS_PER_REV, 26, 33, 25, 32);
void setup()
{
}
void loop()
{
// Rotate CW 1/2 turn slowly
StepsRequired = STEPS_PER_OUT_REV * 2 ;
steppermotor.setSpeed(1000);
steppermotor.step(StepsRequired);
delay(1000);
}
……………………..
It is an NODEMCU-32S model.
i have tested only this script with my esp32 and works fine, but when i try to integrate it with // Route to set GPIO to LOW or HIGH it restarts my esp32. any suggestions? Thank you.
Hi, can you you please explain in lay man terms what is the difference between this ESP32 webserver and the other similar tutorial you have? https://randomnerdtutorials.com/esp32-web-server-arduino-ide/
Would be good to know the pros/cons of each. Thanks again!
Hello Amin, It’s these projects are very similar. A web server means that your ESP hosts a web page and serves it to a client.
Thanks for your reply. So the only difference between these two methods is that one stores the web page on the SPIFFS memory and the other in the regular memory? (SRAM?)
Is there a reason why you would have both methods? Is one better than the other in some case?
Hello, I really liked your tutorial, it’s fabulous. I have a doubt and I try to understand the operation of the code in detail. Why do the arguments “String ()” and “false” pass in the third and fourth arguments of the Send method? Can’t they receive a null value and if this is why?
Thank you.
Hi.
Because that’s the way it is used to send an HTML saved on SPIFFS with processors.
You can learn more here: github.com/me-no-dev/ESPAsyncWebServer#respond-with-content-coming-from-a-file-containing-templates
Regards,
Sara
Hola! Primero gracias por el compartir sus trabajo. ¿Existe alguna forma de acceder al server del ESP32 de formal on line, es decir desde fuera de la red local?
Muchas gracias!
Your site is awesome 🙂 especially who wants to make web server. Big plus for explanation on the picture like in this post (placeholders, redirects/on and off), for me its really helped better understand the code. Best wishes 🙂
Thanks 😀
Hi, is there a way to write the SPIFFS file through OTA?
just a small thing. The Serial Monitor shows
STATE
OFFSTATE
ONSTATE
OFFSTATE
ONSTATE
OFFSTATE
ONSTATE
OFF
but I can’t find where to add the cr/lf after ‘OFF’/’ON’.
Changing the Serial.print(ledState); to a println() seems to lockup.
Dave
